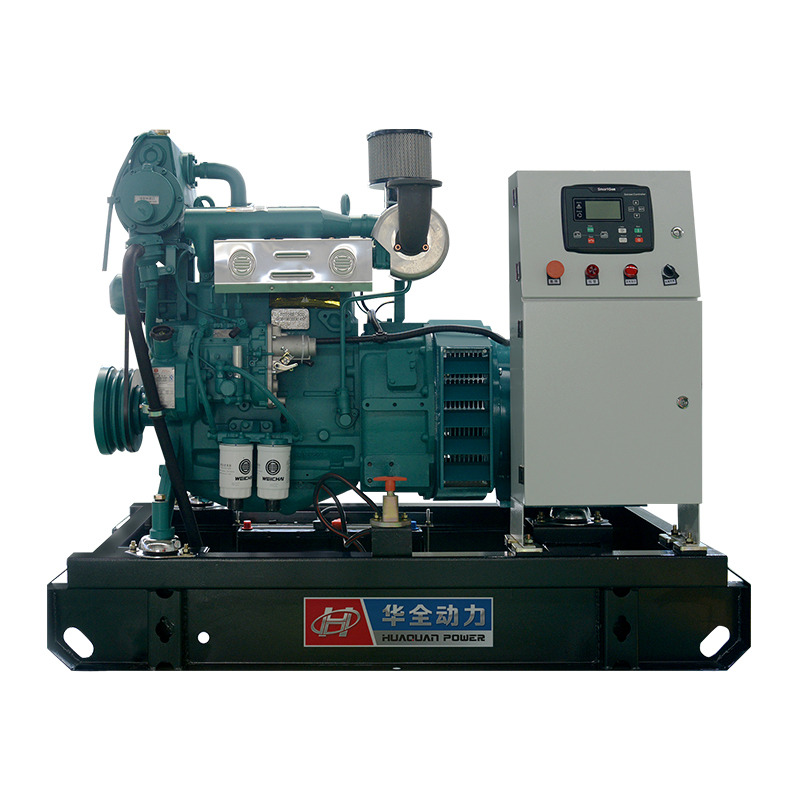

25kw 30kva China Engine Generator Marine Boat Use HQ25GF

1 Set
MOQ
$4,450.00(1 - 1 Sets) $4,400.00(>=2 Sets)
τιμή
25kw 30kva China Engine Generator Marine Boat Use HQ25GF
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty: 3months-1year
Πιστοποίηση: CE
Model Number: HQ25GF
Rated Voltage: 400/230V 380/220V 220/110V
Rated Current: 45A
Speed: 1500/1800RPM
Frequency: 50HZ/60HZ
25kw genset product type: 30kva weichai engine diesel marine genset for sale
Alternator type: Brushless/Stanford
Cylinder No.: 2
engine power: 25KW
fuel consumption: 208g/kw.h
cooling method: water cooled
optional consumption: silent/ATS/trailer/electric pump/protection system
warranty period: one year
starting method: electric start
25kva genset color: as per your requirement
Βασικές πληροφορίες
Πιστοποίηση: CE
Model Number: HQ25GF
Πληρωμής & Αποστολής Όροι
Packaging Details: 25kva genset with plywood package
Supply Ability: 400 Set/Sets per Month 25kva genset
Περιγραφή προϊόντων
1、Huaquan 25kw diesel generator set is small in size, light in weight and low in power: easy to install and reduce the cost waste caused by high power.
2、The small generator uses closed water circulation cooling: improve the heat transfer efficiency of the equipment and reduce the investment cost of the material of the equipment.
3、Direct-injection internal combustion engine: four-cylinder, direct-injection fuel supply, low fuel consumption and reduced operating costs.
4、The unit has strong durability: equipped with a radiator water tank suitable for the environment of 40 ℃ -50 ℃, a belt-driven cooling fan, and a fan safety shield. Safe and stable operation.
5、Long service life and guaranteed maintenance: Due to product quality problems, free maintenance or replacement parts are provided,and paid for life.


Technical parameters of diesel generator set
Generator set model：HQ25GF
Steady state voltage adjustment rate (%):≤± 1
Generator power:25kW/31.25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:45A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1700*700*1650（L*W*H mm
Diesel generator fuel consumption (100% load):220g/kW·h
Diesel generator weight:350kg
Diesel generator volume(LP7m):95dB（A）
Technical parameters of diesel engine
Diesel engines brand：Weichai diesel engine
Cooling method: sea and water exchange cooling
Diesel engines model: WP2.3CD25E200
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 89*92mm
Intake method: Natural inhalation
Compression ratio: 18：1
Overload capacity: 110%
Start method：DC 12V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Generator brand：Huaquan Brushless Generator
Protection level：IP22
Generator Model：HQF-25
Wiring mode：Three-phase four-wire, Y-connection
Generator power: 25kW/31.25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)
Genset standard features
1)、Direct injection internal combustion engine(Diesel)；
2)、AC synchronous generator（Single Bearing）；
3)、Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；
4)、Generation output air switch、Standard control panel；
5)、Steel common base with shock absorber；
6)、Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；
7)、starter battery and connecting cables；
8)、Industrial 9dB muffler and accessories；
9)、The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；
Optional accessories（Extra charged）
1)、Engine oil、diesel、water jacket、Anti-condensation heater
2)、Battery floating charger
3)、Self-protection unit/self-starting control panel
4)、Tree-remote control panel
5)、ATS AUTO-loaded transferring screen
6)、Daily fuel tank、Integral fuel tank
7)、Waterproof type(Cabinet)
8)、Mobile trailer(Drip proof)
9)、Mobile trailer(Silent type)
